XRP Arcade Drive

Overview​

You saw that tank drive gave you a ton of control, but it was really hard to drive smoothly. Then, button drive was super easy to use, but you lost a lot of that fine-tuned control. Now, let's try arcade drive to find a good mix!

Arcade drive may be more familiar, because it is the basis of many video games. One joystick moves the robot forward and backward, and the second joystick turns left and right to do this, we will make the left joystick set a value for both motors and the right joystick will increase or decrease the motor speeds to turn the robot. This control scheme offers less driver control, but it’s easy to learn and many drivers enjoy it

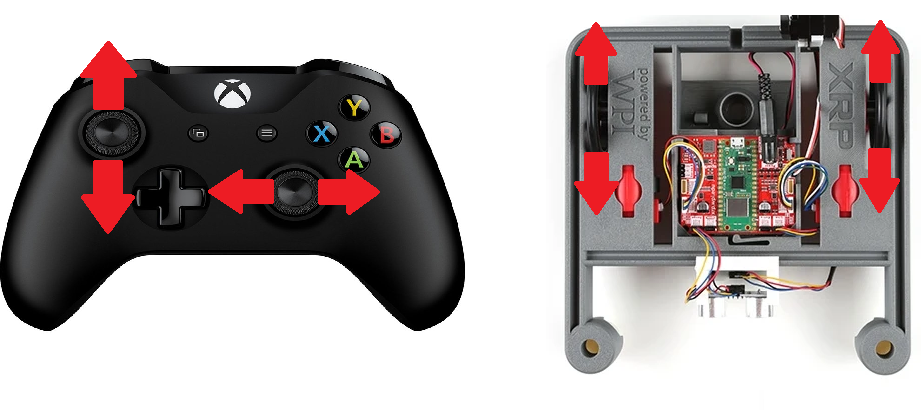

Xbox Controller Arcade Drive

If you have already implemented the Tank Drive tutorial, you can build on that project to add Arcade Drive functionality. No need to create a new project!

The Pre-Code Workout 📊​

Before writing any code, let's plan our ArcadeDrive function. This function will translate joystick inputs into motor speeds, combining forward/backward motion and turning into a single control scheme.

Inputs and Outputs​

The function needs two inputs from the joystick and will produce two outputs to control the motors.

  • Inputs:

    1. forward (double): Controls forward/backward motion (from the joystick's Y-axis).
    2. turn (double): Controls turning motion (from the joystick's X-axis).

  • Outputs:

    • Left Motor Speed: Calculated as forward + turn.
    • Right Motor Speed: Calculated as forward - turn (inverted).

Tasks:​

  1. Read joystick Y-axis for forward/backward motion.
  2. Read joystick X-axis for turning.
  3. Calculate left and right motor speeds based on the inputs.
  4. Set the motor speeds to control the robot.

Flow Chart:​

Flow Chart 📊

Time to Start Coding​

Creating a project​

If you haven't already created an XRP project, you'll need to do that now. See [How to Create an XRP Project](../../XRP Docs/03_XRP_project/index.md) If you have, it's time to start coding!

Create a Drivetrain Subsystem​

The first step is to create a subsystem for our drivetrain. See How to Create a Subsystem for instructions on how to do this. You should name your subsystem Drivetrain.

Drivetrain.h Header File​

For more information on what header (.h) files are, see [What are Header files](../../CPP Docs/CPP_software_quick_reference/index.md#what-are-header-files-h).

Navigate to your Drivetrain.h file. Here are the steps you need to follow:

  1. Include the XRP Motor header.
    Add the necessary include statement at the top of your file so you can use the XRP motor objects.
    If you need help, see the XRP Motor Quick Reference.

  2. Add the motor objects.
    Create objects for the left and right motors.
    For more details, refer to the XRP Motor Quick Reference.

  3. Add the ArcadeDrive function declaration.
    In the public section of your class, declare the ArcadeDrive function.
    If you need help with C++ functions, check the [C++ function Quick Reference](../../CPP Docs/CPP_software_quick_reference/index.md#functions).

Your Drivetrain.h file should look like this.
// Copyright (c) FIRST and other WPILib contributors.
// Open Source Software; you can modify and/or share it under the terms of
// the WPILib BSD license file in the root directory of this project.

#pragma once
#include <frc/xrp/XRPMotor.h>
#include <frc2/command/SubsystemBase.h>

class Drivetrain : public frc2::SubsystemBase {
 public:
  Drivetrain();

  /**
   * Will be called periodically whenever the CommandScheduler runs.
   */
  void Periodic() override;

  // ArcadeDrive has two inputs: Speed and Turning.
  void ArcadeDrive(double Speed, double Turning);

 private:
  // Components (e.g. motor controllers and sensors) should generally be
  // declared private and exposed only through public methods.

  // This creates an object for the left and right motor
  frc::XRPMotor m_left_motor{0};
  frc::XRPMotor m_right_motor{1};
};

Drivetrain.cpp Source File​

For more information on what source file (.cpp) files are, see [What are source files](../../CPP Docs/CPP_software_quick_reference/index.md#what-are-source-files-cpp).

Navigate to your Drivetrain.cpp file. Here are the steps you need to follow:

  1. ArcadeDrive function definition We will add the ArcadeDrive function definition. If you need help with C++ functions, check the [C++ function Quick Reference](../../CPP Docs/CPP_software_quick_reference/index.md#functions).

  2. Adding function body We will now add the function body. This is where we will do the math to get the left and right motor speeds

  // Set the speed of the left and right motors based on the arcade drive inputs
  double left_motor = speed + turning;
  double right_motor = speed - turning;

  m_left_motor.Set(left_motor);
  m_right_motor.Set(right_motor);
Your Drivetrain.cpp file should look like this.
// Copyright (c) FIRST and other WPILib contributors.
// Open Source Software; you can modify and/or share it under the terms of
// the WPILib BSD license file in the root directory of this project.

#include "subsystems/Drivetrain.h"

Drivetrain::Drivetrain() = default;

// This method will be called once per scheduler run
void Drivetrain::Periodic() {}

void Drivetrain::ArcadeDrive(double speed, double turning){
    // Set the speed of the left and right motors based on the arcade drive inputs
    double left_motor = speed + turning;
    double right_motor = speed - turning;

    m_left_motor.Set(left_motor);
    m_right_motor.Set(right_motor);
}

RobotContainer.h Header File​

The RobotContainer.h file is where you set up your robot's main structure, including subsystems and input devices. For more information on header files, see [What are Header files](../../CPP Docs/CPP_software_quick_reference/index.md#what-are-header-files-h).

Navigate to your RobotContainer.h file. Here’s what you need to do:

  1. Include the Drivetrain Subsystem Header
    Add an #include statement for your Drivetrain.h file so you can use your drivetrain subsystem. If you need help with adding includes see [Include Statements (#include)](../../CPP Docs/CPP_software_quick_reference/index.md#include-statements-include)

  2. Declare the Drivetrain Subsystem
    Add a member variable for your Drivetrain subsystem. If you need help see [member veriable declarations](../../CPP Docs/CPP_software_quick_reference/index.md#member-variable-declarations)

  3. Include your xbox controller
    Add an include for your xbox controller. If you need help see Xbox Controller

  4. Declare the xbox controller.
    Add an xbox controller. If you need help see Xbox Controller

Your RobotContainer.h file should look like this:

RobotContainer.cpp Source File​

The RobotContainer.cpp file is where you define how your robot's main container works. This is where you connect your subsystems and input devices, and set up how the robot will be controlled.

Navigate to your RobotContainer.cpp file. Here’s what you need to do:

Your RobotContainer.cpp file should look like this:

Time to test your code​
