The ECE398 Weather Station

The ECE 398 Weather Station was designed and realized by students enrolled in Vertically Integrated Projects in the Electrical Engineering department at Bradley University. This project aims to provide students on Bradley's campus a way to monitor and log weather data. In the future, we hope this project expands to hosting multiple weather nodes that can all work together to accurately predict weather on campus.

This site serves to document the Weather Station software and provides instruction for running the software on other systems efficiently.

Accessing Our Data

In its current form, the Weather Station is just one node that uploads data to a server which is accessible at weather.jacobsimeone.net.

This website gets its data from a publicly-accessible API, which users are also free to use at weather.jacobsimeone.net/api/envdata

Design Overview

The hardware used in the weather station is either off-the-shelf or 3d-printed in-house on Prusa Mk4S printers. Our CAD can be found on OnShape.

Furthermore, the ECE 398 Weather Station project is split up into four primary pieces of software:

  • The Firmware, which runs on the microcontroller that collects the data
  • A Broker, which "translates" LoRa messages into network traffic that can be posted to the API
  • An API, used for saving data to a database and accessing said data later
  • The Website, an example of implementation for what one can do with the data and is how we currently share our data.
graph TD
    subgraph Weather Station
        sen[Sensors]
        ws[Weather Station Controller]
        lr[LoRa Radio]
        sen -->|SPI| ws
        ws -->|UART| lr
    end
    lr -->|LoRa| blr[Broker Radio]
    subgraph On-Site Server
        blr -->|UART| b[Broker]
    end
    b -->|Over Internet, JSON| api([API, node.js])
    subgraph Cloud Server
        api --> db[(Database, redis)]
        db --> api
        api -->|JSON| web[Website, Next.js]
    end
    c[Client] --> web
    web --> c

The Weather Station, equipped with a LoRa radio, transmits data to a broker equipped with the same radio where the data is parsed and converted into JSON to publish to the API. The API then saves that data to a Redis database located on the same physical server which can also be hosting the website. (The website can be hosted remotely, but you will need to set the API endpoint) Clients can then connect to the website to view data served by the API.

Broker Radio Location

However the radio is connected to the on-site server is fine, but the radio on the Weather Station and the radio on the broker must be in range of each other.

Tech Stack

Maintainers of the Weather Station should be proficient in the following technologies to effectively support the Weather Station system:

Firmware

  • PlatformIO - an IDE that works with VsCode and the Arduino framework
  • ESP32 - Microcontroller used in the Weather Station (can be swapped in the future)
  • LoRa - Long-Range radio communication technology used to transfer data

API

Website

User Manual

When powering on the station, the status LED will tell the user what is going on:

Blink Code Reason
Off OK/Idle
On Booting / Boot Retry
Slow Blink Boot Failed
Very fast blink Transmit

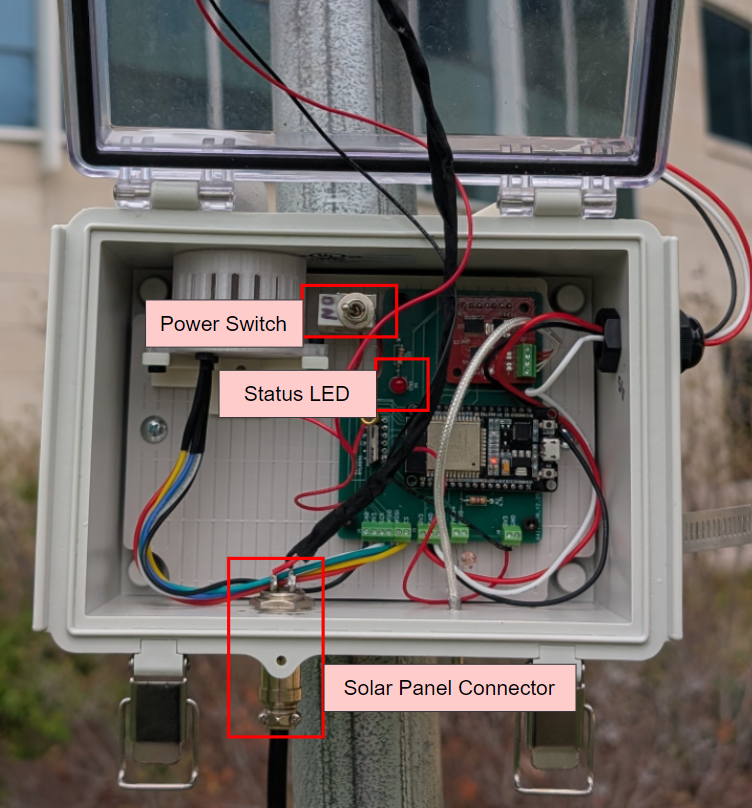

Inside the Station

This shows the parts inside of the station that are commonly used by maintainers
