Wiring Diagrams

User Wiring

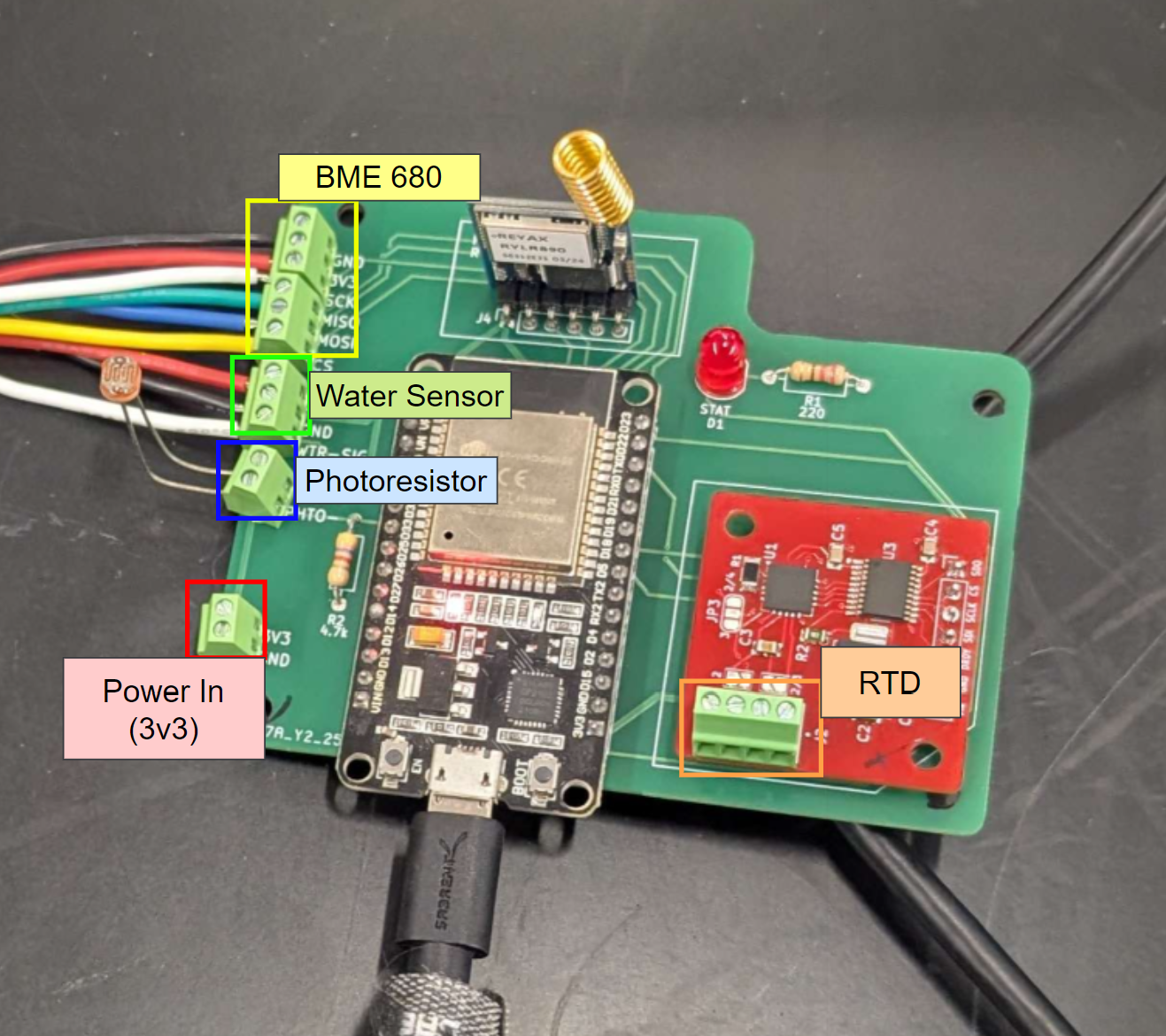

The following diagram shows what parts wire to where on the control board. The control board has labels for each connection on the corresponding module.

Control Board Schematic

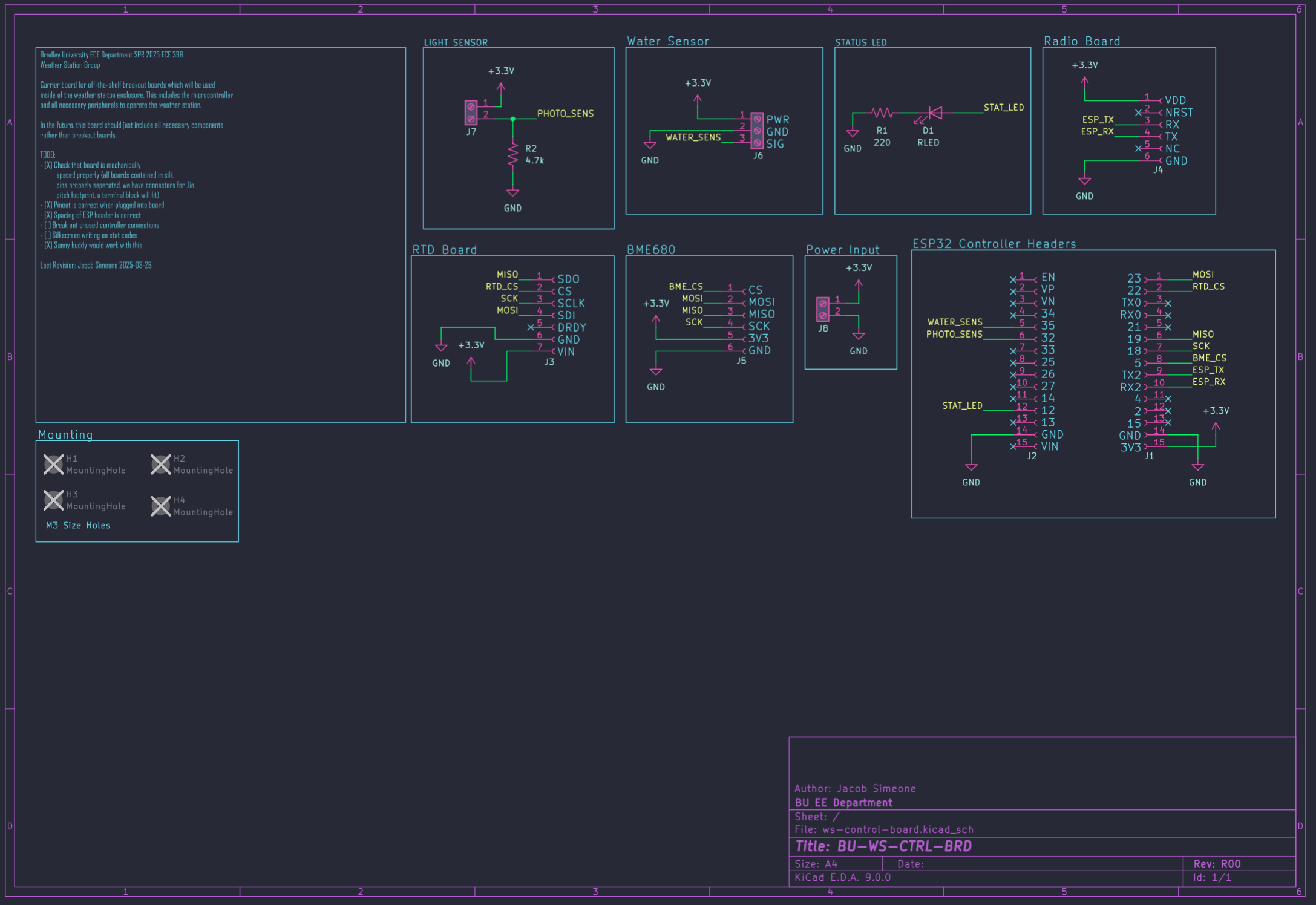

Below is the schematic for the control board, showing where all the connections go internally on the PCB.

Notes

• The photoresistor is at roughly 2k Ohms in a well-lit room
